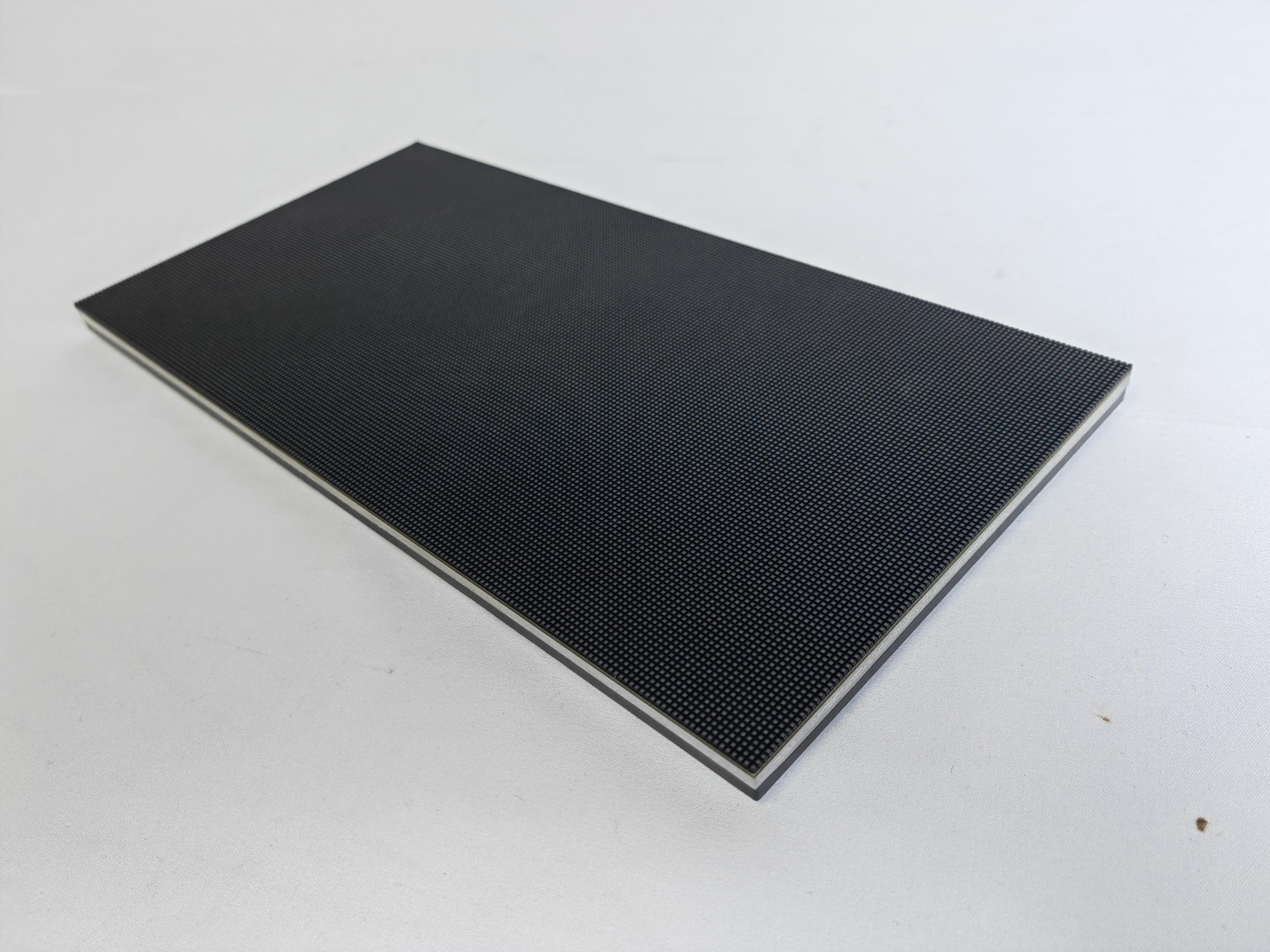

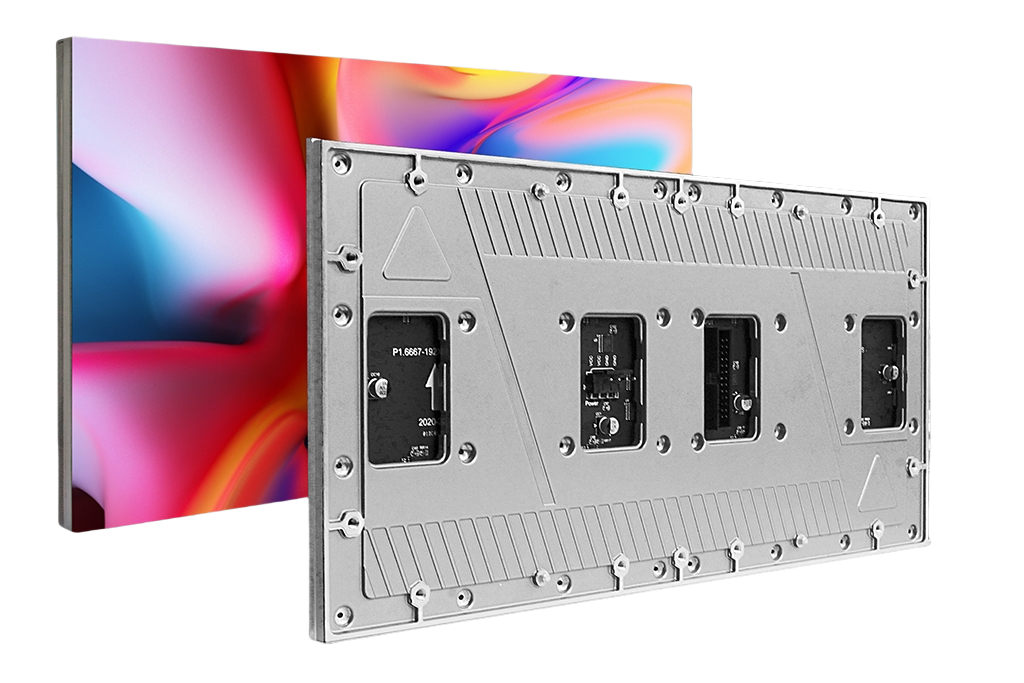

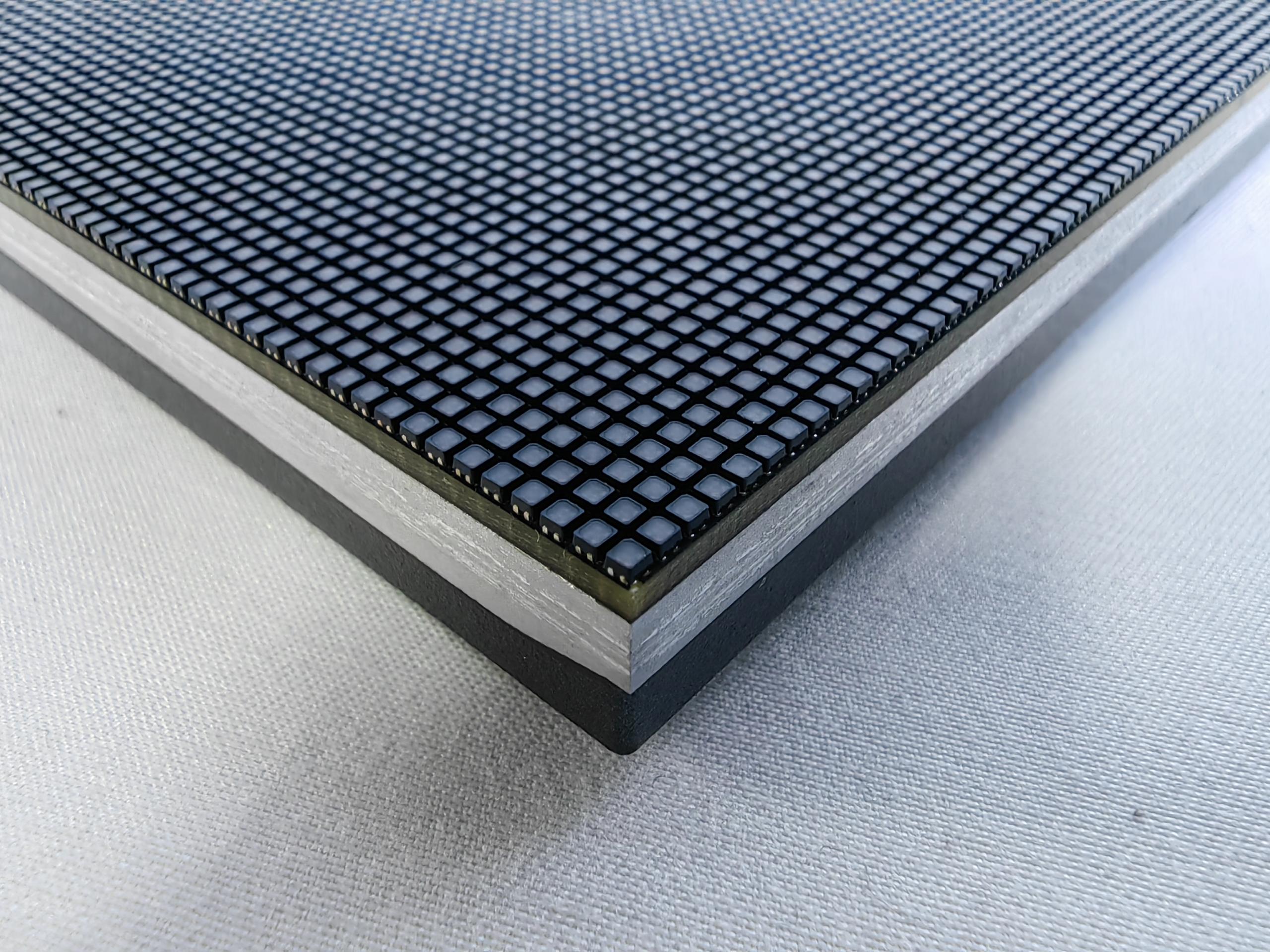

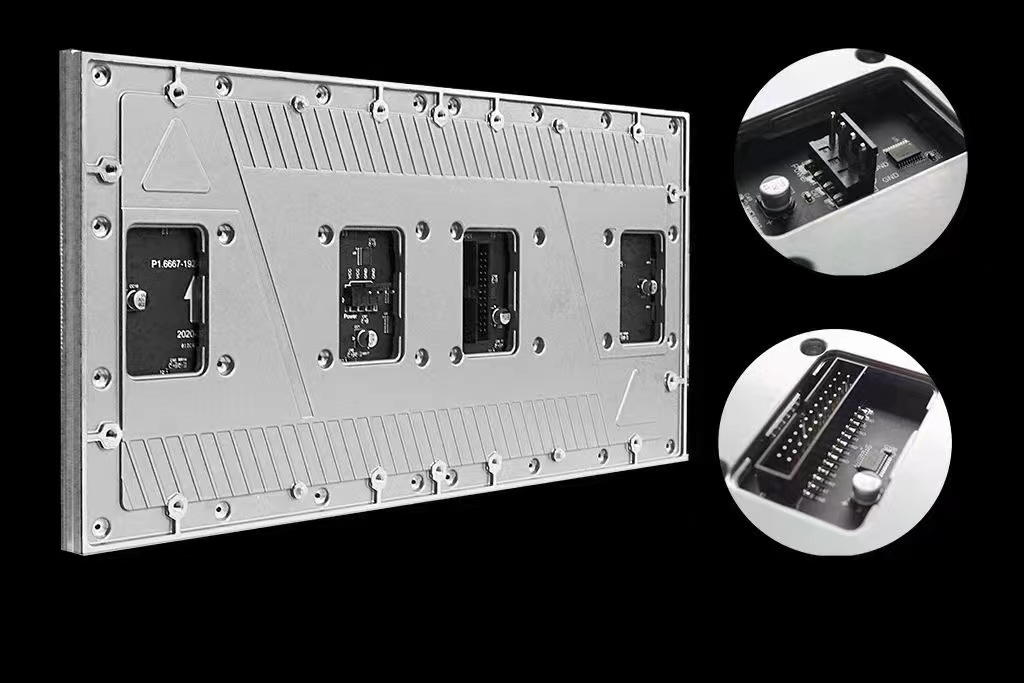

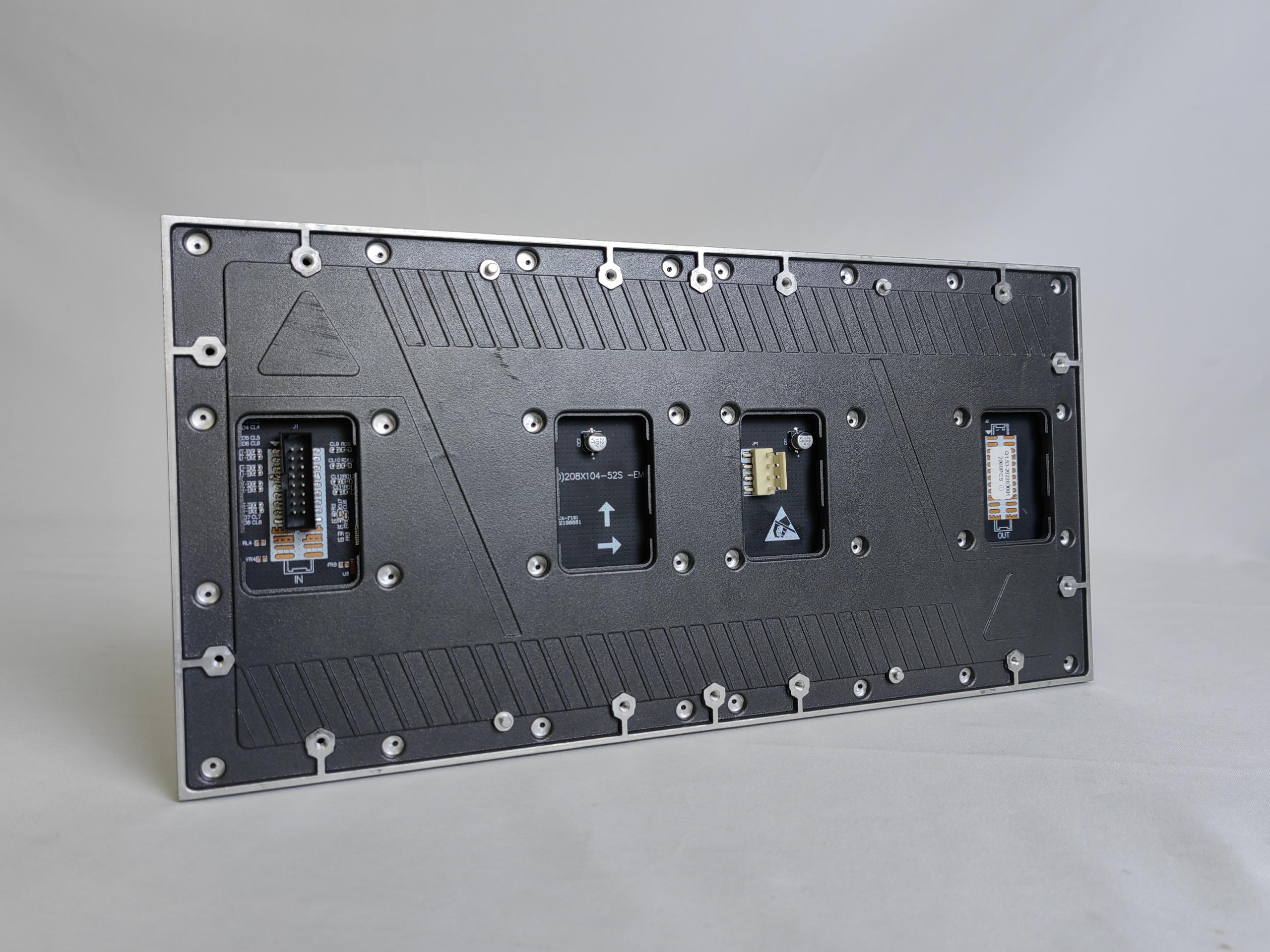

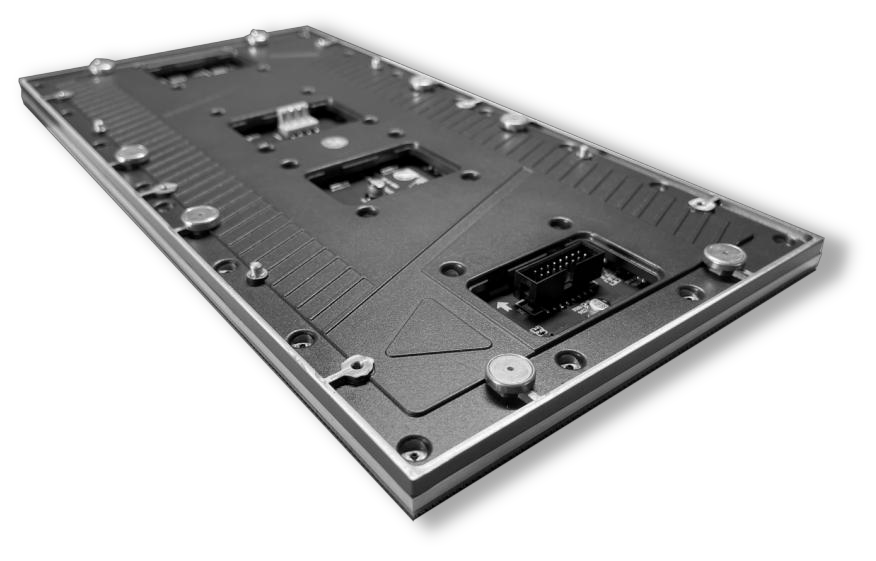

JIUWLDS SMD2020 1R1G1B Led Module Fine Dot pitch P2.5 RGB SMD2020 High Resolution High Refresh Rate Led Module
High IP
High Flatness
High Contrast
P1.25,P1.53,P1.86,P2.5
- Overview
- Related Products
|
MODULE SPECIFICATION |
|
|
Place of Origin |
Fujian, China |
|
Use |
Advertising publish, Retail store, Shopping mall,Airport, Subway, Elevator, Restaurant & Hotel Supplie, stadiums, Exhibition Hall, Wayfinding, Education, Medical treatment etc |
|
Specification |
LED Module |
|
Model |
P2.5 |
|
Resolution (Dots) |
128×64 |
|
Module Size (mm) |
320×160×18 |
|
Visible Angle (H/ V) |
≤110°/110° |
|
Flatness |
≥98% |
|
LED Type |
SMD2020 |
|
Dot pitch |
2.5mm(X:2.5,Y:2.5) |
|
Pixel Point Composition |
1R1G1B |
|
Brightness |
≤500cd/ m² |
|
Contrast Ratio |
4000:1 |
|
Refresh rate (Hz) |
≥1920~3840 |
|
Screen color temperature |
2000K～9500K (Adjustable) |
|
Brightness Adjustment |
Manual/Automatic/Program Control |
|
Screen color temperature |
2000K～9500K (Adjustable) |
|
IP Rating |
IP30 |
