JIUWLDS P2.976 Interactive LED Floor Tile Stand Dance Display Screen Full color 2000kg/SQM loading weight
- Overview
- Related Products
|
Specification & Model |
P2.976 |
|
Pitch |
P2.976mm |
|
Application |
Indoor |
|

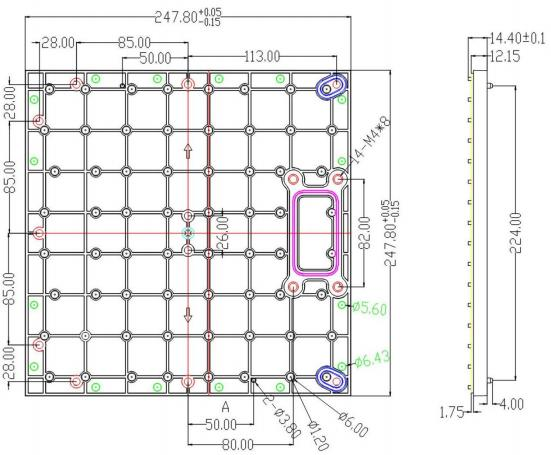

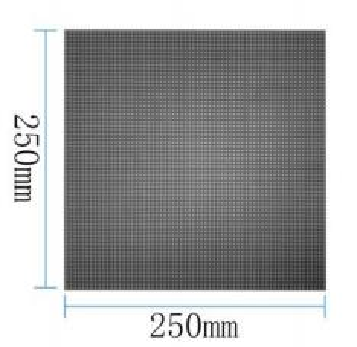

Module Size |
250mm × 250mm (L × W) |
|
Module Interaction |
Built-in chip sensor interaction, external radar sensor interaction |
|
Module Surface Treatment |
Customized mask (PC+composite material), CNC deep processing |
|
Display Resolution |
84 ×84 |
|
Input Voltage (DC) |
4.5±0.1V |
|
Maximum Current |
≤8A |
|
Driver IC |
High Brush (BrandTBD) |
|
Driving Method |
1/21 constant current driver |
|
Module Rated Power |
≤35W |
|
Driver IC |
High Brush (BrandTBD) |
|
Driving Method |
1/21 constant current driver |
|
Dot Density |
112896 dots /㎡ |
|
Brightness |
≥1800cd/㎡ |
|
Contrast |
≥3000:1 |
|
Viewing Angle |
110°(h), 110° (v) |
|
Box Module Flatness |
≦1mm |
|
Chromaticity Uniformity |
±0.003 |
|
Power supply |
5V40A |
|
Grayscale |
16384 |
|
Color Bits |
16bit |
|
Frame rate |
50Hz -60Hz |
|
Refresh Rate |
≥3840Hz |
|
IP rate |
Front IP65/Rear IP54 |
|
Peak Power |
≤800W/ m² |
|
Average power |
≤400W/㎡ |
|
Weight-carrying capacity |
≥2000(Kg/㎡) |
